4 Easy Steps to Prepare a Flange for 3D Scanning
When performing flange inspections using 3D scanning technology, accuracy begins long before the scanner is activated. The quality of the scan depends heavily on proper flange preparation. Even the most advanced scanning equipment can only measure what it "sees," making surface preparation and environmental control essential for obtaining reliable results.
In this article, we'll explore four key steps required to prepare a flange for inspection with FlangeVision and explain why each step is critical to achieving high-accuracy measurements.
Why Proper Flange Preparation Matters
3D laser scanners work by projecting laser light onto a surface and measuring the reflected light that returns to the scanner. Any material present on the flange surface—including grease, rust, dirt, or coatings— isn’t distinguished by the scanner, and becomes part of the final scanned measurement.
If the scanner measures contamination instead of the actual metal surface, the resulting data will not accurately represent the true condition of the flange. Proper preparation ensures that inspection results reflect the true geometry of the flange and support confident maintenance and repair decisions.
Step 1: Clean the Surface to Bare Metal
Before scanning, thoroughly remove any contaminants from the flange surface, including: Grease, Oil films, Dirt and dust, Corrosion, and Process residue.
Depending on the condition of the flange, cleaning methods may include:
Wire brushing
Buffing wheels
Abrasive cleaning
Surface preparation tools appropriate for the application
The goal is to expose the actual metal surface that needs to be measured. A laser scanner measures whatever is visible on the surface. If a layer of rust or grease remains, the scanner will measure that material rather than the flange itself, and this will alter the measured thickness of the flange.

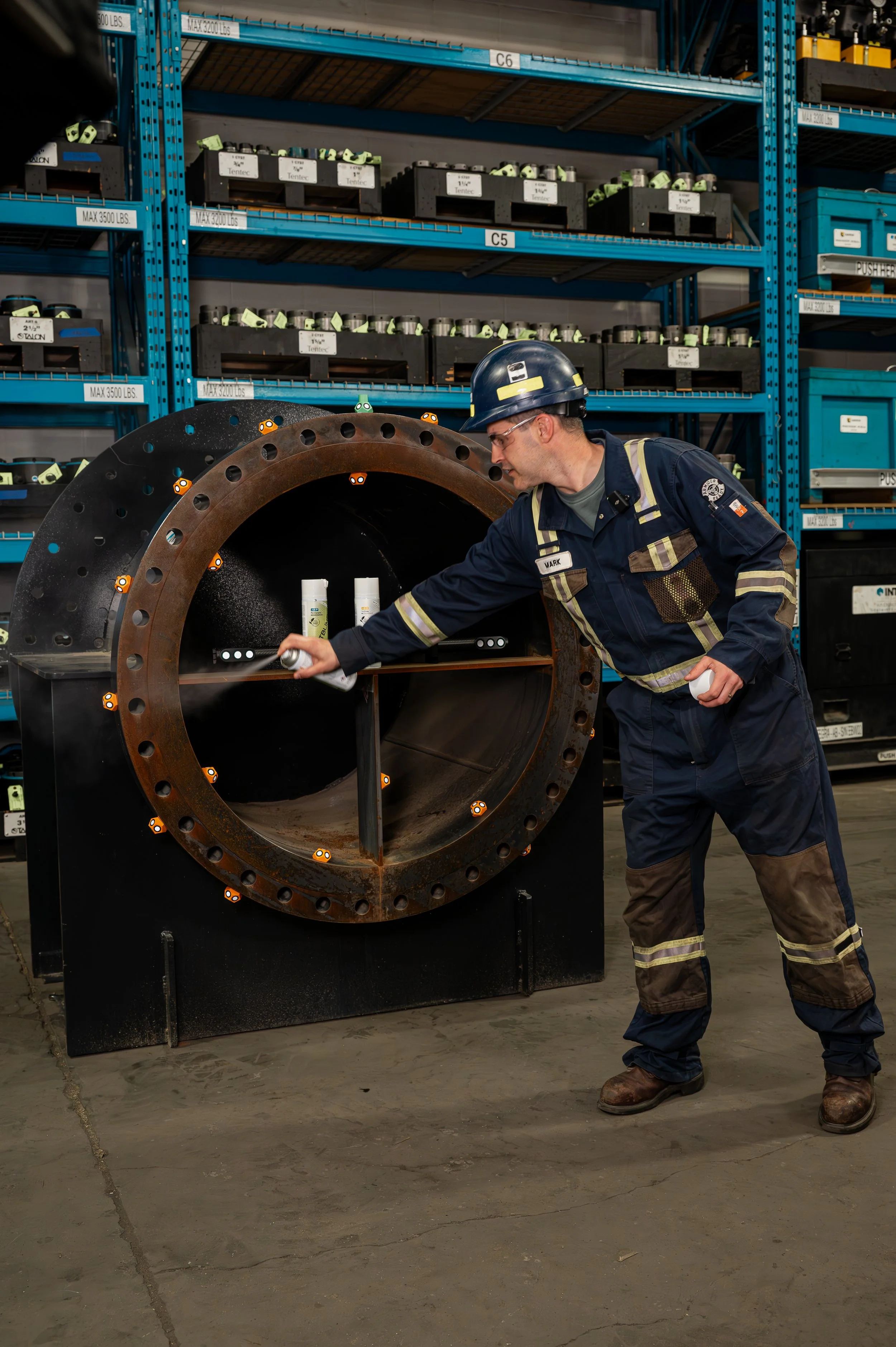

Step 2: Apply Scanning Spray for Optimal Laser Reflection
Once the flange is clean, apply a light coating of scanning spray across the inspection surface. The spray creates a thin, matte white finish that improves laser reflection without significantly altering the measured surface. Only a light dusting is required—more is not necessarily better.
Many flange surfaces are difficult for optical measurement systems to scan effectively and can either absorb laser light or reflect it inconsistently, reducing scan quality. Because blue light scanners rely on reflected light, poor reflectivity can lead to Incomplete scans, Increased noise in the final data, Reduced accuracy or longer scanning times.
Scanning spray, such as AttBlime Scanning Spray Products, create a consistent optical surface that allows the scanner to capture cleaner, more reliable data.

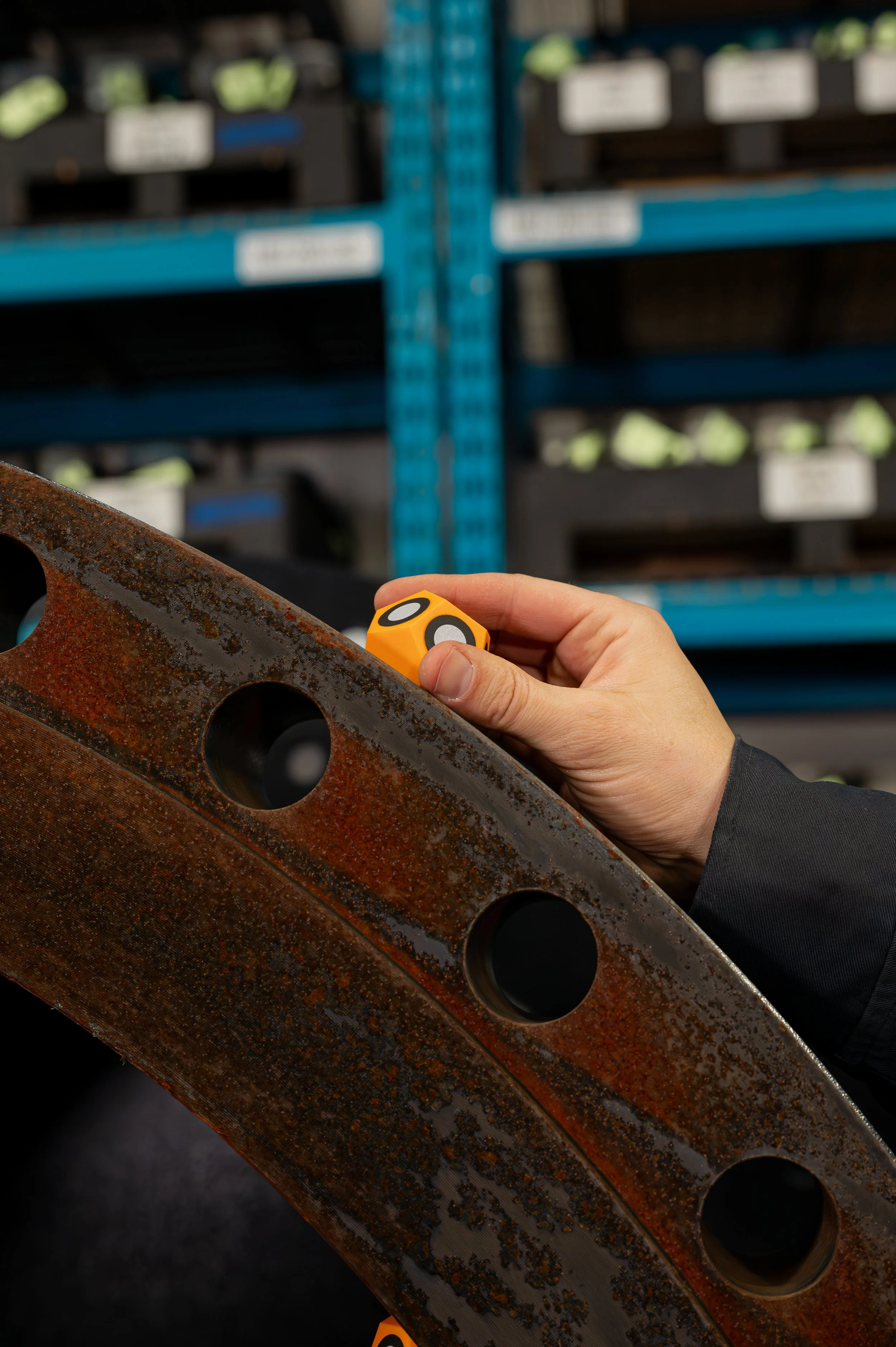

Step 3: Apply Reference Targets for Accurate Scanner Tracking
Place reflective targets around the flange to provide positional references for the scanner. For 3D scanning systems such as the Scanology KScan X, targets should be distributed randomly around the flange, positioned on the ID and OD where possible, and kept off critical measurement surfaces such as the raised faces, bolt seating surfaces and back faces.
3D Laser scanners determine their position through triangulation.
To maintain accurate tracking, the scanner must continuously see multiple targets during the scanning process.
In many systems, at least four targets must remain visible at all times.
Without adequate target coverage scanner tracking can be lost, alignment errors may occur, data quality can suffer, and measurement accuracy can decrease.
Using a uniquely shaped marker in the twelve o'clock position provides an important orientation reference, ensuring that reported defects correspond to their actual locations on the physical flange.
NOTE: In brighter environments, additional targets may be required to help maintain scanner tracking.
Step 4: Control Ambient Lighting Conditions
Although 3D Laser scanners are extremely accurate and efficient, they remain optical instruments. Direct sunlight contains a powerful full-spectrum light that can overpower the scanner's projected laser beam. When sunlight interferes with the scanner, the laser becomes difficult to detect, tracking and data collection may be interrupted and point cloud noise increases.
While some scanners may still collect data in bright conditions, the resulting scan quality often falls below the precision required for flange inspection applications. For inspections requiring accuracy within thousandths of an inch, controlling environmental factors is essential.
Manage the lighting environment around the flange during scanning. Inspection tents, sunshades or large umbrellas and strategic scheduling during lower-light periods can help to optimize light conditions.
Conclusion
3D laser scanning has transformed flange inspection by delivering fast, highly accurate measurements that can rival traditional metrology methods. However, achieving that level of precision depends on proper preparation.
Clean surfaces, optimized reflectivity, optimal target placement, and controlled lighting conditions work together to ensure the scanner captures the true condition of the flange. By following these four preparation steps, inspection teams can maximize data quality, reduce rework, and generate more reliable inspection reports every time.
When accuracy matters, preparation isn't optional—it's the foundation of a successful scan.
